Complete Tower Cranes Handbook: Selection, Installation & Safety

Understanding Tower Cranes and Their Importance in Construction

Tower Cranes are among the most essential pieces of lifting equipment used in modern construction projects. They are specifically designed to lift heavy materials, such as steel beams, concrete blocks, and large tools, to great heights safely and efficiently. Their ability to handle large loads and reach significant vertical and horizontal distances makes them indispensable for high-rise buildings, bridges, and large infrastructure works.

1. What is a Tower Crane?

A Tower Crane is a tall, fixed or mobile lifting structure equipped with a mast, jib (horizontal arm), and counterweights. It operates through a combination of mechanical power and operator control systems to move materials both vertically and horizontally.

Height Capacity: Can exceed 200 meters with proper mast extensions.
Load Capacity: Typically between 8 to 20 tonnes, depending on configuration.
Horizontal Reach: Jibs can extend 50–80 meters in length.

2. Main Types of Tower Cranes

Type of Tower Crane	Best Use Scenario	Max Height (m)	Max Load Capacity (tonnes)	Horizontal Reach (m)
Hammerhead	General construction, heavy lifting	60–250	10–20	60–80
Luffing Jib	Projects with limited swing radius	50–200	8–18	45–60
Self-Erecting	Small to medium-sized projects, quick setup	20–50	2–8	20–50
Flat Top	Sites with multiple cranes operating closely	50–220	8–16	55–70

3. Why Tower Cranes are Important in Construction

Increased Efficiency – Tower Cranes significantly reduce material handling time, allowing construction teams to focus on assembly and installation rather than manual lifting.
Enhanced Safety – Properly operated Tower Cranes lower the risk of workplace accidents related to heavy lifting.
Cost-Effectiveness for Large Projects – While the initial investment or rental cost is high, the speed and capacity gains often offset expenses.
Adaptability – Modular mast sections and adjustable jibs make Tower Cranes suitable for projects of varying heights and scales.

4. Key Operational Considerations

Wind Resistance: Tower Cranes are engineered to withstand high wind loads; however, operations are typically halted when wind speeds exceed safe limits (e.g., 20–25 m/s).
Foundation Stability: Proper anchoring and ground preparation are critical for safe operation.
Operator Training: Only certified professionals should operate Tower Cranes to ensure both safety and efficiency.

Key Factors in Choosing the Right Tower Cranes

Selecting the right Tower Crane is a crucial decision that impacts project efficiency, safety, and costs. The choice depends on factors such as the project’s height, load requirements, site constraints, and duration of use.

1. Load Capacity

Understanding the maximum weight a Tower Crane must lift is essential. Overestimating may lead to overspending on unnecessary capacity, while underestimating could cause operational delays.

2. Height and Reach Requirements

Ensure the crane’s mast and jib length meet the project’s vertical and horizontal requirements.

Parameter	Low-Rise Projects	Mid-Rise Projects	High-Rise Projects
Max Height	20–50 m	50–150 m	150–250 m
Max Load Capacity	2–8 tonnes	8–16 tonnes	10–20 tonnes
Horizontal Reach	20–50 m	50–70 m	60–80 m

3. Site Constraints

Evaluate available space for crane erection and operation. In congested areas, a Luffing Jib Tower Crane may be more suitable.

4. Project Duration

Long-term projects may benefit from a crane purchase, while short-term projects often find leasing more cost-effective.

5. Cost vs. Performance

Balance budget with performance needs to avoid overspending without compromising on safety and efficiency.

Comprehensive Guide to Tower Cranes: From Selection to Operation

A thorough understanding of Tower Cranes ensures efficient selection, safe installation, and optimal operation. This guide covers each stage in detail to help construction professionals make informed decisions.

1. Selection Process

Determine load, height, and reach requirements.
Assess site conditions, wind factors, and accessibility.
Compare specifications of different crane types to match project needs.

2. Installation Steps

Prepare foundation with proper anchoring.
Assemble mast, jib, and counterweights using mobile cranes.
Conduct thorough safety inspections before commissioning.

3. Safe Operation Guidelines

Operate within manufacturer’s load limits.
Cease operations under hazardous weather conditions.
Ensure clear communication between operator and ground crew.

4. Maintenance Practices

Regular maintenance extends crane lifespan and enhances safety. This includes lubrication, structural inspections, and replacement of worn parts.

Tower Cranes in Future Construction Trends

The future of Tower Cranes in construction is shaped by technological innovation, sustainability goals, and increasing project complexity. As cities expand vertically, demand for advanced crane solutions will continue to grow.

1. Technological Advancements

Automation and Remote Control: Increasing use of remote operation to improve safety and precision.
Smart Sensors: Real-time monitoring of load, wind speed, and structural integrity.
Energy Efficiency: Integration of regenerative braking and hybrid power systems.

2. Sustainability Focus

Future Tower Cranes will incorporate eco-friendly designs, lightweight materials, and energy-saving systems to align with green building practices.

3. Case Example: Jiangsu Tengfa Construction Machinery Co., Ltd.

Jiangsu Tengfa Construction Machinery Co., Ltd. specializes in the production of tower cranes and construction hoists, with a registered capital of 55 million yuan and an annual output value of 500 million yuan. Established in 2007 and located in Hailing Industrial Park of Taizhou City, Jiangsu Province, the company integrates research, production, sales, and service. It holds a national Class A qualification for manufacturing special equipment and is a director unit of the China Construction Machinery Industry Association.

The company’s product range includes tower cap tower cranes, flat-top tower cranes, jib tower cranes, construction hoists, and more than thirty varieties of non-standard series construction machinery equipment. With “Quality First, Striving for Perfection” as its theme, the company invests heavily in R&D, has obtained multiple patents, and passed ISO9001:2015 quality system certification. Over 30,000 units have been distributed across China and exported to over twenty countries.

4. Global Demand Trends

As urban projects grow taller and more complex, global demand for high-performance Tower Cranes will increase. Companies like Jiangsu Tengfa Construction Machinery Co., Ltd. are positioned to meet this demand through innovation, quality assurance, and international market expansion.

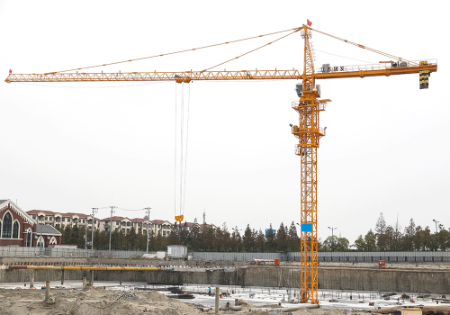

QTZ100(6013) Topkit Tower Crane 6T 8T Double Rotation
